Brother HL-L5210DN Laser

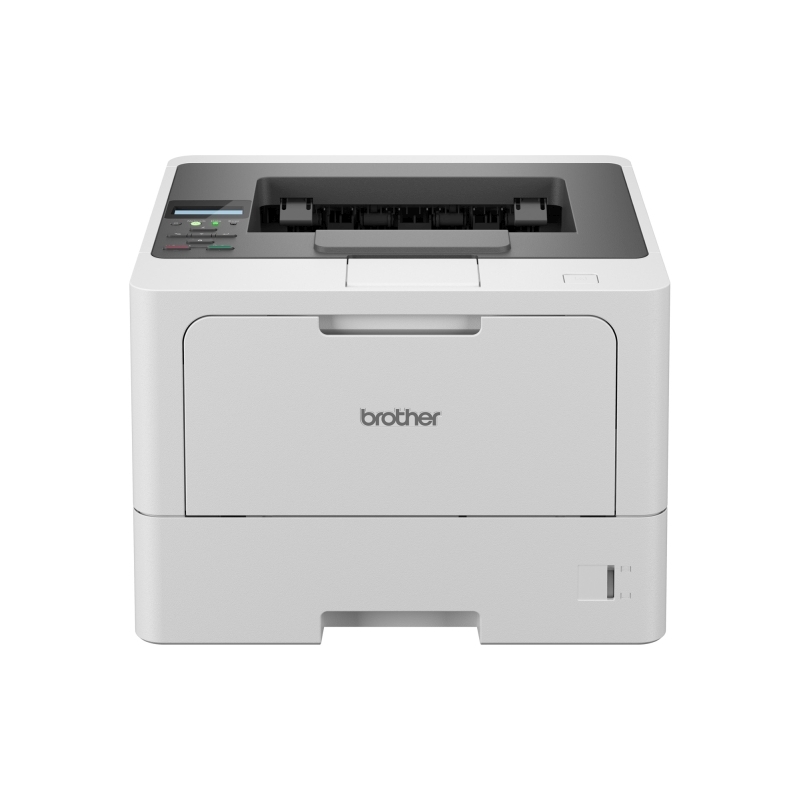

Brother HL-L5210DN Mono Laser Printer
The Brother HL-L5210DN is a dedicated monochrome laser printer for offices whose day-to-day output is built around text documents, forms and business records. Its focus is reliable shared printing rather than the scanning and copying functions of a multifunction machine. A separate toner and drum system lets the office replenish each supply according to its own service life.
Gigabit Ethernet suits an established wired office network, with USB available for a directly connected computer. Its wired configuration is useful where wireless access is unnecessary. Optional trays and several replacement toner capacities help tailor replenishment and paper loading to the volume of work, without changing the core print-only setup.
Key Features
Print A4 monochrome documents at up to 48 pages per minute, with first-page output in less than 6.7 seconds from Ready under the stated test conditions.
Automatic A4 duplex printing produces double-sided documents without manually reloading the sheets.
A 250-sheet main tray and 100-sheet multipurpose tray accommodate routine documents and occasional specialist media.
Compatible optional trays add up to 1,040 sheets of paper capacity. Tray configuration and supported media restrictions apply.
Secure Print holds compatible jobs until the user enters a password at the device; feature availability depends on the driver and platform.
Standard, high-yield and higher-capacity genuine toner choices are listed below, alongside matching Cartridge World alternatives where available.
Specifications
Capabilities & Supported Media
- Printer Type
- Mono Laser Printer
- Connectivity
- USB; Ethernet; Apple AirPrint; Mopria
- Features
- Automatic Duplex Printing; Secure Print; Quiet Mode; Toner Save Mode; Booklet Printing; N-up Printing; Poster Printing; Watermark Printing; Expandable Paper Capacity; Envelope Printing; Label Printing
- Supported Paper Sizes
- A4; A5; A6; B5; Letter; Executive; Legal; Folio; Mexico Legal; Indian Legal; A4 Short; 16K; COM-10 Envelope; DL Envelope; C5 Envelope; Monarch Envelope
Printing & Controls
- Functions
- Monochrome print only
- A4 speed
- Up to 48 ppm
- Automatic duplex speed
- Up to 24 sides per minute / 12 sheets per minute
- Resolution
- Up to 1,200 × 1,200 dpi
- First page
- Less than 6.7 seconds from Ready
- Memory
- 256 MB
- Display
- One-line, 16-character LCD
Paper Handling
- Standard input
- 250-sheet cassette plus 100-sheet multipurpose tray
- Optional input
- Compatible 250-sheet and 520-sheet trays; up to 1,040 additional sheets
- Output
- Up to 150 sheets face down; one sheet face up
- Standard tray media weight
- 60–163 g/m²
- Multipurpose media weight
- 60–230 g/m²
- Automatic duplex
- A4, 60–105 g/m²
- Media restrictions
- Heavier media may require reduced speed and the straight output path. Envelope sizes use the multipurpose tray; optional trays have different media limits.
Dimensions & Supplies
- Dimensions
- 373 × 388 × 257 mm (W × D × H)
- Weight
- Approximately 11 kg with consumables
- Included toner
- Up to 3,000 pages
- Replacement drum
- DR3605; separate from toner
- Recommended monthly volume
- 500–5,000 pages
Compatible Ink, Toner & Maintenance Supplies
Click a product code to view the genuine supply or its Cartridge World alternative where available.
| Cartridge / Supply | Genuine OEM | Cartridge World | Approximate Yield / Capacity |
|---|---|---|---|
| Brother TN3605 Toner Cartridge | TN-3605 | — | Up to 3,000 pages |
| Brother TN3605XL Toner Cartridge | TN-3605XL | L02-PB-B-T3605X | Up to 6,000 pages |
| Brother TN3605XXL Toner Cartridge | TN-3605XXL | L02-PB-B-T3605XX | Up to 11,000 pages |
| Brother DR3605 Drum Unit | DR-3605 | — | Up to 75,000 pages1 |
- Genuine drum life is up to 75,000 pages at three pages per job or 45,000 pages at one page per job. Actual life varies with printing conditions.
Page yields are approximate and depend on content, settings and use. Toner page yields follow the manufacturer’s stated test conditions. Initial supplied toner may differ from replacement cartridges.
Paper sizes are supported through at least one included feed; tray, weight and automatic-duplex restrictions apply. Driver features and mobile services vary by platform. Check current manufacturer support for software compatibility.
