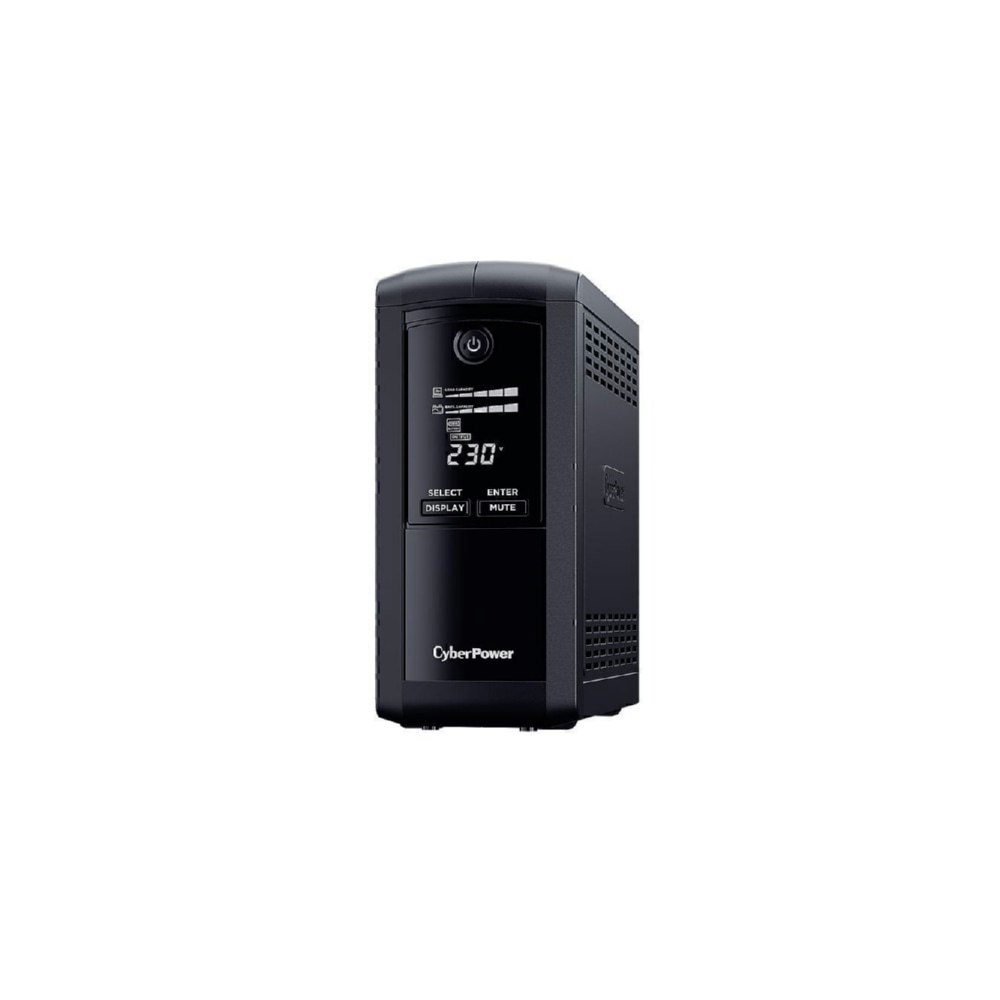

CyberPower VP1000ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes and brownouts. Designed with GreenPower UPS Technology.
Specifications:
Phase: Single Phase
Form Factor: Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 167 ~ 295
Input Frequency ( Hz ): 50 ± 5 | 60 ± 5
Rated Input Current ( A ): 4.35
Input Connector Type: IEC C14
Power Cord Length (m.): 1.5
Output Capacity (Watts): 550
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) - Total: 3
Outlet(s) - Battery & Surge Protected: 3
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 9
Runtime at Full Load ( min ): 1
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: No
Battery Type: Sealed Lead-acid
Surge Suppression ( Joules ): 450
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning
HID Compliant USB Port(s): 1
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs ): USB Cable x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Personal (Recommended)
Enclosure Construction: Plastic
Dimensions: 100 x 227 x 260mm
Weight: 6.23kg
Certifications: CE, RCM
Features:
Line-interactive UPS Topology
Generator Compatible
Automatic Voltage Regulation (AVR)
High-speed Ethernet Data Transmission
Surge and Spike Protection
PowerPanel Management Software
Energy Saving Technology
Simulated Sine Wave Output
LCD Status Display
USB Connectivity Port
Serial Connectivity Port
